Balcony kits should be placed centrally over
the down-pipes, so that the butterfly nuts fit into the
holes drilled into the base. The height should then be
adjusted by twisting the threaded pipe. Any excess thread
can be sawn off. The patio tiles should be laid directly
abutting against the stainless steel deck-grille.
|
|
|
|
|
The correct height for the grille can be achieved by
twisting the threaded pipe.
|
|
|

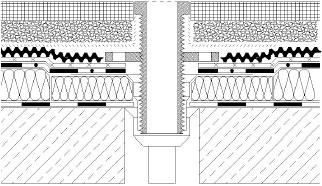

Base and Water Abstraction
|
| The channels and
holes cut into the base also helps to abstract moisture from
the water-carrying layer. |
|
| |
| Surface water is drained by means
of the stainless steel deck-grille. |
|
|
|
|

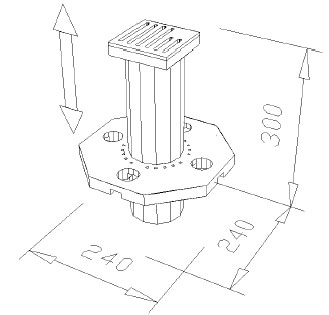

Run-off for Balconies and Terraces
|
- Stainless steel grille (10cm x 10cm)
- Height infinitely adjustable from 4-30cm permits tight
closure to the level of tiles.
- Perfect installation on most down-pipes because the
grille includes spaces for nuts and bolts from the
down-pipe.
- Rapid and secure water drainage through channels and
drill-holes.
- Easy-clean
- Threaded pipe can be shortened on-site with a saw
|
 |
|
|
|
 |
|
|
|
|
|
Dim.
|
BLH-30
|
|
High
|
[cm]
|
4-30 infinitely adjustable
|
|
Grille dimensions
|
[cm]
|
10x10
|
|
Base
|
[cm]
|
20x20
|
|
Material (grille)
|
|
Stainless steel
|
|
Material (base)
|
|
Polypropylene
|
|
Outer diameter (Threaded pipe)
|
[mm]
|
95
|
|
|
