Terrace Channels

Catalog

Creating Corners
Various angles may be cut with a circular saw direct onsite. The cut edges of the grille should afterwards be treated with a zinc spray.

Abutment of Channels
The channels should be laid in such a way that the gratings overlap the ends of the channels. This allows the channel to be aligned better and avoids gaps between the ends of the channels.


Drainage Openings
For channelled pipe drainage, the pipes are often led into the channels. For an extra charge, the channels can be supplied from a height of 8 cm with 52-mm drainage openings, which can be pressed out by the customer.

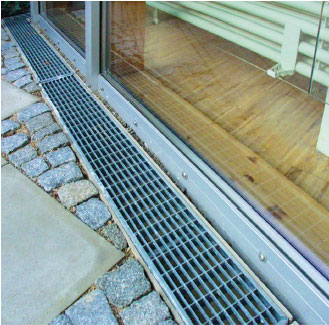

Terrace Channels
The channel system channels the water away immediately, and also reduces the danger of slipping in case of frost or heavy rainfall. Channel abutments should be screwed together where they are subject to flexing. The screw holes are positioned as standard for a channel height of 8 cm.

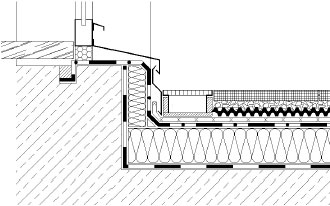

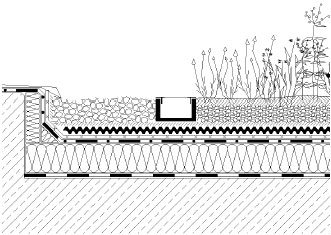

Installation Example

Channels should be installed in front of the terrace doors or deep-set window frontages, and where roof and walls join, to keep rainwater away from the building. The channel system channels the water away immediately, and also reduces the danger of slipping in case of frost or heavy rainfall.


Lenghts to Fit

The channels are available in 1 metre lengths. Other length to fit can be produced on request.



Terrace Channels
APP channels allow fast and reliable water drainage. The channels, which are resistant to bitumen, acid and chemicals and are class B2 fire protection materials, are manufactured from high quality recycled materials. The channel gratings with a mesh size of 40x10 mm are fully galvanised steel, cast iron or stainless steel. The channel system can be walked upon.

Channe Base
  • channels open as standard
  • solid base at extra cost



Height Adjustment

One needs a spanner for adjustments to the appropriate height and to flush with the surroundings.

A nut must be released and, after the adjustments, be tightened up again. The height is infinitely adjustable between 8 and 12 cm. This is only valid for RNH-models!



Technical data



Dim.
RNF-FF-03
RNF-FF-05
RNF-FF-08
 RNF-ES-03 RNF-ES-05 RNF-ES-08
RNFV
Height
[cm]
3
5
8
 3 5 8

connector for RNF chanells, fully galvanized/ stainless steel
Width
[cm]
14
14
14
 14 14 14
Length
[cm]
100
100
100
100
100
100
Grating


Fully galvanised with a mesh width of 40x10 mm

stainless steel with a mesh width of 40x10 mm
Load-Class

A15
A15
A15
 A15 A15 A15
