'Segment' Plant Containers
|
|
|
From a minimum height of 25 cm, curved
boundaries should be planned along with 'Segment' plant
containers. The flow of curves is not disturbed by joins.
|
|
|
Visible Surfaces
|
|
|
The visible surfaces, which are varnished
to RAL standards may be coloured to individual taste.
|
|
|
|
|
Possible Radius
|
|
Radius
|
[m]
|
3
|
6
|
10
|
12
|
15
|
18
|
20
|
|
Extent
|
[m]
|
18,85
|
37,70
|
62,83
|
75,40
|
94,25
|
113,10
|
125,66
|
|
Pieces/circle
|
|
17
|
34
|
57
|
68
|
85
|
102
|
113
|
|
Length
|
[m]
|
1,11
|
1,11
|
1,11
|
1,11
|
1,11
|
1,11
|
1,11
|
|
|
|
|
Edge-Section (Rounded) RDB
|
APP Edge-Sections allow an individual design to be laid
out on the roof. The anthracite-coloured sections are
manufactured from high quality recycled material, and blend
unobtrusively into the roof garden. For the completed
project illustrated at left, the architect used exclusively
recycled materials, which is characteristic of his
ecological building methods.
|
|
Fitzwilliam Hotel,
Stephens Green, Dublin
Architect: Brady Shipman
Martin
Garden area: 860 qm
Drainage: DE-25
Edging: RDB-25
|
|
|
 |
|
|
|

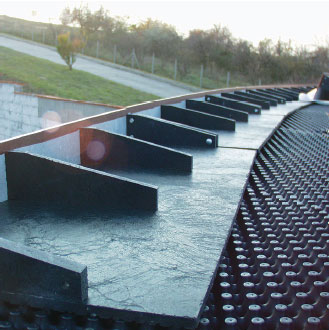

Roof-Edge Definition As Fascia Substitute
|
|
|
|
|
