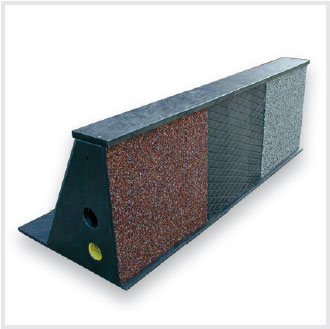

- Anthracite-coloured diamond pattern as standard
- Varnished to RAL standard
- Faced
- Stainless steel facing
- Sandstone facing
|
|
|
|
|
|
|
 |
|
|
Technical Data
|
|
|
Dim.
|
RDA-25
|
RDA-40
|
|
Height
|
[cm]
|
25
|
40
|
|
Lenght
|
[cm]
|
115
|
|
Weight
|
[kg/lfm]
|
11,0
|
17,8
|
|
Vertical visible surface
|
|
Standard diamond-pattern anthracite-coloured polish
Varnished to RAL standard
|
|
Horizontal visible surface
|
|
Standard smooth anthracite
Stainless steel
Sandstone
|
|
Exterior corner (LxWxH)
|
[cm]
|
30x30x25
|
48x48x40
|
|
Interior corner (LxWxH)
|
[cm]
|
60x60x25
|
96x96x40
|
|
Corner-box
|
[cm]
|
30x30x25
|
48x48x40
|
|
|
|
|

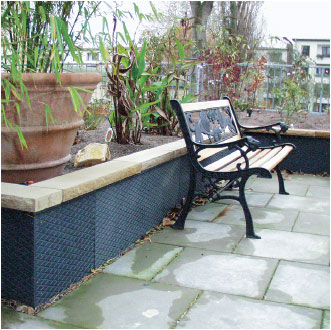

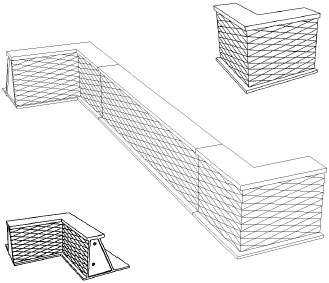

Edge-Pieces ("A"- shaped) RDA
|

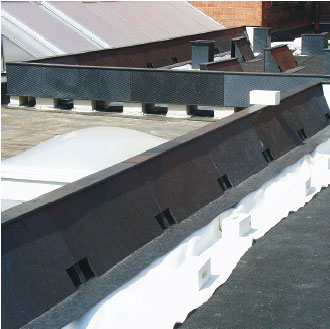

APP "A"- shaped edge-pieces may be
used to define planted areas, pedestrian and patio surfaces, or
to form troughs. Edge-pieces offer the following advantages:
- Minimal weight
- Pieces numbered to correspond to plan
- Rapidly laid
- Varnished to RAL standard
- Polished
- Clad with stainless steel
- ...and no limits set on your imagination
|
|
|
|
|
|
|
|
|
Electrical and Sewage Conduits
|
|
If, subsequently, it becomes desirable to
tie in other conduits, built-in drainpipes are ideal for the
purpose.
|
|
|
|
|
|
|
|
