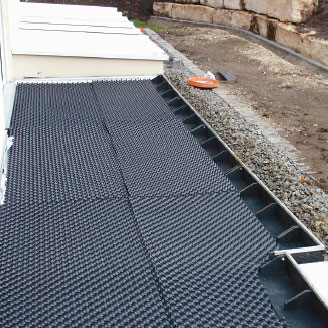

| The edge-pieces are installed along
the edge of the roof or at the edges of the areas to be marked
out, after the roof has been sealed and after the protective,
drainage and filter layers have been laid. The filter membrane
must extend to the top of the edge piece. The pieces can be
joined together using special screws.. |
 |
|
Varnished, Faced
|
|
|
|
|
RDL EDGE-PIECES ("L-SHAPED")
APP "L-shaped" edge pieces are used to
define planted areas, to mark out pedestrian and patio
surfaces, or to form troughs. Standard heights are 12 and 19
cm, but edge-pieces can be produced to any height at the
customer's request. External surfaces are finished with an
aesthetic diamond pattern, and are pierced with drainage
slits. Where they are going to be on display, varnishing or
polishing at the factory will enhance their looks. The
recycled material is impact-resistant, and can be easily cut
to size with a circular saw.
|
|
|
|
|
A light
aluminium profile is attached to the upper surface of the
edge-pieces. When laying a run of these items, they should be
laid in such a way that the aluminium profiles overlap the
junction of the edge pieces. This allows for better alignment
and avoids gaps between the ends of the pieces. |
|
|
|
|
|
| The edge pieces can be screwed
together at the ends, but this is not necessary. Screws are
delivered as an option. |
|
|
|
|
|
| Horizontal slits guarantee a water drainage
rate of 2000 mm2 / linear metre. |
|
|
Technical Data
|
|
|
Dim.
|
RDL-12
|
RDL-19
|
|
Height
|
[cm]
|
12
|
19
|
|
Width
|
[mm]
|
19
|
24
|
|
Lenght
|
[cm]
|
115
|
|
Thickness
|
[mm]
|
16
|
|
Colour
|
|
Anthracite
|
|
Exterior
|
|
diamond pattern
|
|
Water
drainage openings
|
[mm2]
|
approx 2000
|
|
Other
dimensions on request.
|
|
|
|
