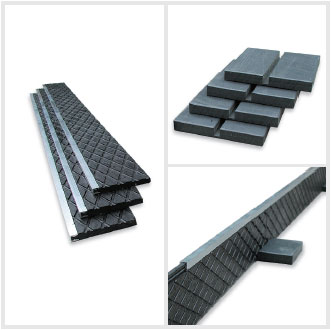

KLS-10 Recycled-PE Gravel Board
- Only for separation
- Should be banked up on both sides
- Aluminium profile for easy alignment
- Footprint demands: 1 unit per linear metre
- Cost-effective
- Easy construction of corners and irregular lines
|
|
|
|
|
Aluminium Profile for Lining up
|
| A light aluminium
profile is attached to the upper surface of the KLS-10 gravel
board. When laying a run of these items, they should be laid in
such a way that the aluminium profiles overlap the board
junctions. This allows for better alignment and avoids gaps
between the ends of the gravel boards. |
|
| |
|
|
| |
Corners
|

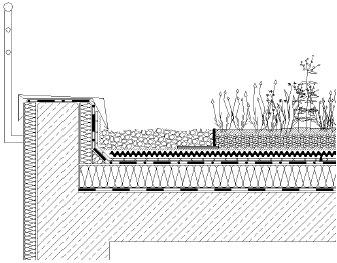

| The gravel boards are installed on
the area to be marked out after the roof has been sealed and
after the protective, drainage and filter layer has been laid.
During installation, both sides of the element should be filled
at the same time. |
|
|
|
Technical Data
|
|
Dim.
|
KLS-10
|
KLS-12
|
|
Material
|
|
Rec-PE
|
Stainless Steel
|
|
Height
|
[cm]
|
10
|
12
|
|
Lenght
|
[cm]
|
115
|
200
|
|
Feet
|
[cm]
|
15*15
|
12
|
|
Thickness
|
[mm]
|
10
|
1,0
|
|
Water-permeability ca.
|
[cm2]
|
80
|
90
|
|
|
|
|
|
|
|

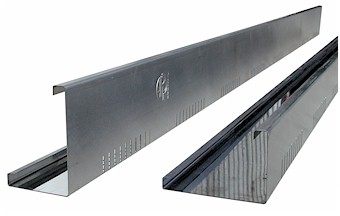

KLSE-12 Stainless Steel Gravel Board
- Separation and demarcation
- May also be used as edge pieces
- Impact-connectors facilitate alignment
- Impact connector footprint: 50 cm
|
|
|
|
| |
Impact-Conection
|
The elements can be
laid
more effectively with the
connector, which allows them
to be simultaneously aligned. |
|
|
|
|
|
|
 |
|
