My-Garage

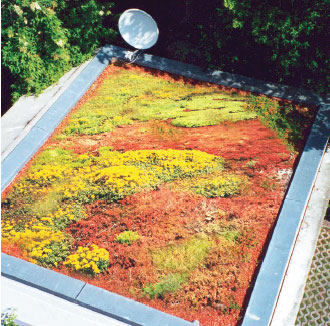

This complete set for high-value extensive roof gardening projects is ideal for the do-it-youself roof gardener. It is sufficient for a garage roof of three metres by six, and includes the following components:

  • Installation instructions
  • Separation Fleece VLT-130
  • Rootprotection layer FLW-800 as a foundation
  • Protector and Storage Fleece VLS-500
  • Drainage and Reservoir Board DE-40
  • Filter Fleece VLF-150
  • Sacks of Diadem EM multilayered extensive substrata
  • 300 shrubs
  • Sparrowhawk scarecrow
  • Fascia box KSA-10

Total weight (dry) ca.: 2250 kg
Representative weight per unit area 250 kg/m2
Layer depth: 15 cm

You will receive the technical part of your complete set conveniently packaged, and the earth will be delivered on a pallette in 50 kg sacks.
You will receive your goods from our delivery company.
The Fascia Box needs to be placed in front of the drainage outlets (see page 16). Your set includes one piece KSA-10.
If you have a prefabricated garage without a parapet, you will need RDL elements to form one. These can be supplied on request (see page 20).





Building Steps
  • Ensure the roof is clean
  • Lay the Root-Protection Layer Loose on the Separation Fleece



  • Spread out the Filter Fleece over the Drainage Boards

  • Lay the Fleeces with a 10 cm Overlap
  • Spread the Soil to a Uniform Depth of 12 cm

  • Plant Your Shrubs: About 14 per Square Metre

  • Water - and Enjoy a Great View - for Decades!
